Audio Grabber - Provides a ready facility for recording a QSO.

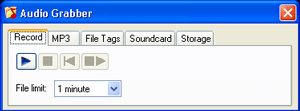

Record - The control buttons from left to right are: Start - starts the recording, Stop - stops the recording, Restart - current recording is abandoned and Save and Start - saves current recording and then automatically starts another one.

The drop down listbox provides a time selection of 1 to 20 minutes or file size from 100kB to 10MB.

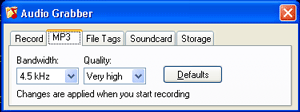

MP3 - Provides bandwidth and quality selections for the recording.

Bandwidth: - The drop down listbox provides choices of 4.5kHz, 7.5kHz or 11kHz.

Quality: - The drop down listbox provides choices of Normal, Low, High, Very High and Voice.

Defaults - Loads the recording defaults of Bandwidth = 4.5kHz and Quality = Very High.

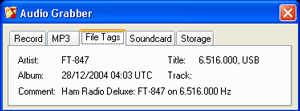

File Tags - Displays information about the recording.

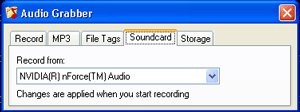

Soundcard - Provides a drop down listbox choice of installed soundcards to be used for the recording.

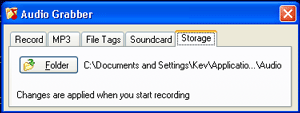

Storage - Provides a choice of storage locations for the recording. The default location will ordinarily be used.

Created 2004 by Kevin Crockett. Comments and suggestions may be e-mailed to
